Single-track Double-head CNC Router Machine-2

Single-track double-head CNC router machine

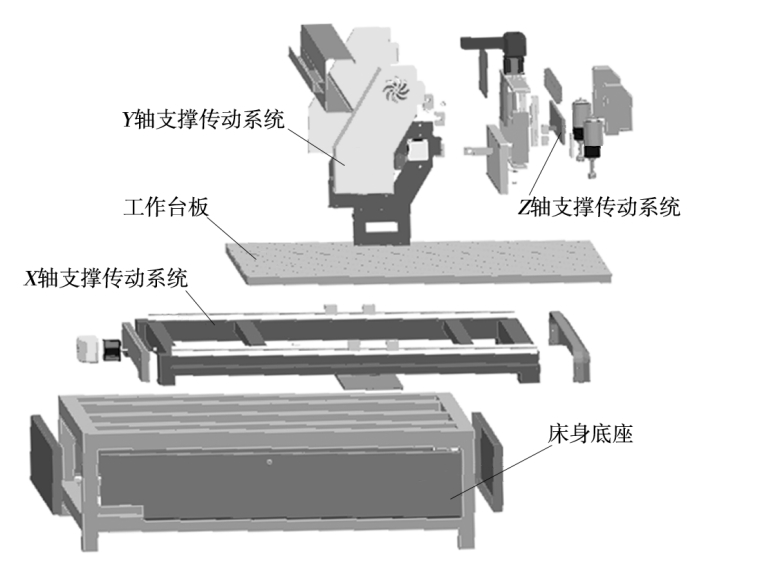

The whole structure of the monorail double-head CNC engraving machine is mainly composed of the bed base, the workbench, the X-axis support transmission system, the Y-axis support transmission system, the shaft support transmission system, the control cabinet and two identical spindles.

X axis travel 1800 mm,Y axis travel 1400 mm,Z axis travel 200 mm, table length 1900 mm, table width 1500 mm, bed base length 2000 mm, The base width of the bed is 1500 mm, the number of T-slots is 20, the width of T-slots is 10 mm, the overall size of the machine tool is 2000 mmx1900 mmx1500 mm, the processing accuracy is 0.02 mm, the repeated positioning accuracy is 0.01 mm, the mesa structure is vacuum adsorption mesa,Y,% structure screw drive. The machine power consumption is 0.5kw, the maximum idle speed is 28000 mm/min, the maximum working speed is 240 000 mm/min. The main shaft consumes 1.5kW power, the main shaft speed is 0~ 24000 r/min, the operation mode is stepped, the working voltage is AC 220 V/50 Hz, the operation instruction G code G code.
