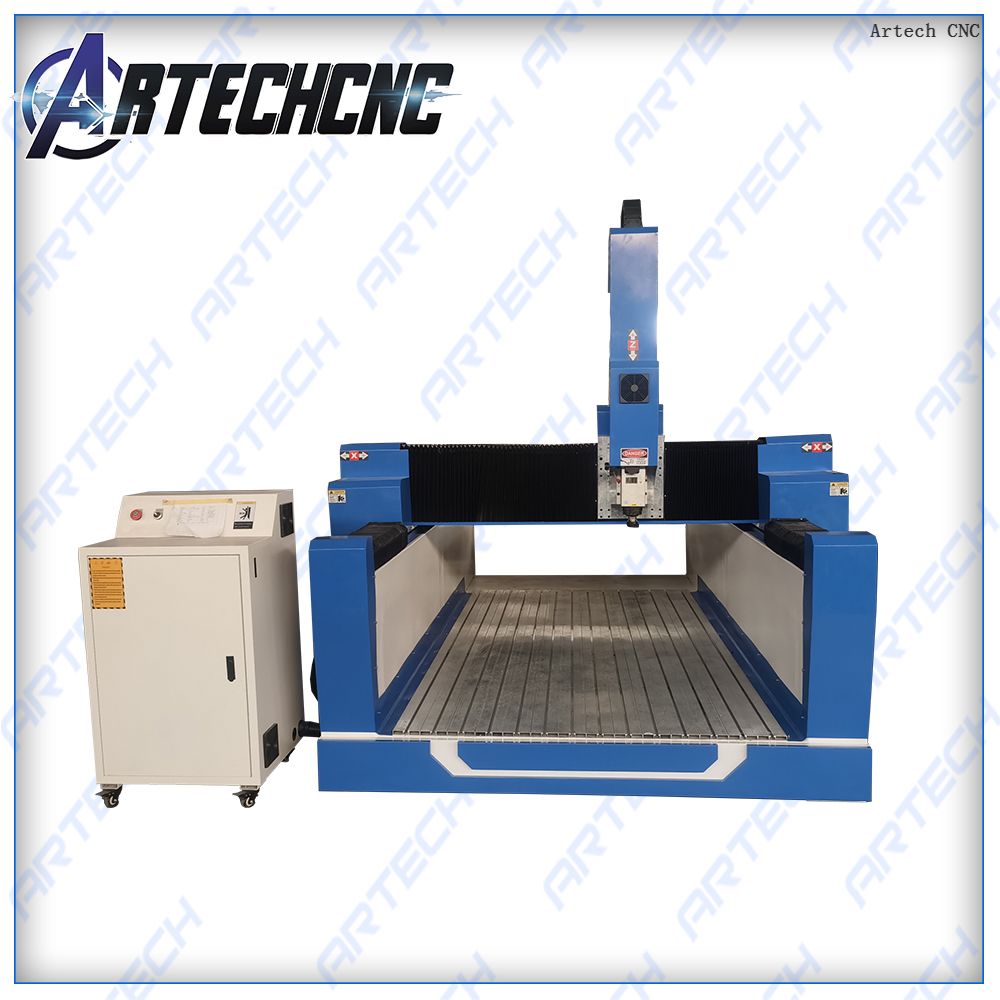

ART-1530-4axis
ARTECH
84659900
Product Description
Feature:
1.Heavy duty frame design, tempering treatment, advance the ductility and the tenacity, same as all working center machines, suitable for cutting heavily. The machine frame is so stronger and not to transform, to keep the high precision for manufacturing. NO SHAKING during high speed working. High standard to handle the frame by Large CNC milling machine. All holes and rail positions are completed finished one time through large CNC. Equipped with ATC tools disk, Servo driver to control, high speed and high precise for postion to get any one tool. To get a tool like a flash.
2.Milling, Cutiing, Drilling, side Grooving, more functions are in one machine, suitable for cutting or processing diversified productions.
3.Italy HSD or Hetico big power ATC or manual air cooling spindle is the standard configuration, 10000rpm for EPS and 24000rpm for wood. Japanese Yaskawa AC servo motors for all axes with plenty, keep the high and stable speed to work. Every component and part is SNIDER and OMRON, most stable parts in the world. We only choose good parts for longer working life for customers. Safe Limiting, E-stop functions, keep safe producing.
4.Anti-dust EPS design, keep long life for every part, motion elements will get long life to move. Auto grease for these important steel motion parts as well. All designs from us are humanized.
Technical Parameter:
Parameters | Standard Specifications |
X Y Z axis working area | 1500x3000x600mm |
Spindle | 9kw hsd air cooling spindle |
X Y Z traveling positioning accuracy | +-0.01/2000mm |
Table | T.slot table |
Vacuum pump | air cooling 5.5kw pump |
X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
Max.rapid travel rate | 50000mm/min |
Max.working speed | 30000mm/min |
Spindle speed | 18000RPM |
Driver motors | Japan Yaskawa Servo motor and driver |
Working voltage | 220V/380V/50HZ |
Command language | G code |
Control system | DSP |
Software compatibility | Option:Artcam,Ucancam,Type3 |
Running environment | Temperature:0~45℃ Relative humidity:30%~75% |
Oil system | handle |
Frame structure | Welding structure |
Video
https://www.youtube.com/embed/DrUB-9KLBGI
Sample
Service
1. Engineers availbal to service machinery overseas.
2. 1 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
