How To Install & Setup Mach3 CNC Controller Software?

Views: 106     Author: Site Editor     Publish Time: 2024-01-12      Origin: Site

Mach3 Overview

Mach3 is a powerful and practical CNC controller software designed to control CNc Router, CNC Mils, CNC PlasmaONC Lathe, and other CNc Machine Tools. The software interface is simple and intuitive, and users can adjust thecorresponding parameters according to their needs. And it has many functions such as numerical control testing, hichprecision machining of complex parts and clearing of corresponding data.

Mach3 CNC controler software is an open CNC system, simple operation, convenient maintenance, open, stableperformance, and low-cost new CNC system. The standard PC computer is completely converted into a full-function CNCcontroler, and the highest 6-axis CNC control, Directly support a variety of DX, BMP, JPG, HPGL file format input, visualG code display, direct G code generation, spindle speed control, multiple relay control, manual pulse generation, includinga larae number of processing stratecies, video display, and touch screen , Full screen display, dicitization. Three.dimensional dynamic display tracking, automatic tool setting, program jump execution (breakpoint memory).

1-2103011026450-L

Mach3 Features

1. Visual G-code display.

2. Touch screen ability.

3. Fully customizable interface.

4. Spindle speed control.

5.Manual pulse generation.

6. Multiple relay control.

7. Video display of machine.

8. Full screen eligibility.

9. Generates Gcode via LazyCam or Wizards.

10.Customizable M-Codes and Macros using VBscript.

1 1. Allows direct import of DXF, BMP, JPG, and HPGL files through LazyCam.

12. Converts a standard PC to a fully featured, 6-axis CNC controller.

Mach3 Applications

1. CNC Mill.

2. CNC Router.

3. CNC Lathe Machine.

4. CNC Laser Machine.

5. CNC Plasma Cutter.

How Does Mach3 Work?

Mach3 is a type of CNC software that runs on a PC and turs it into a very powerful and economical machine controlerTo run Mach3, you need a PC running the Windows operating system with at least a 1GHz processor with a 1024 x 768pixel resolution screen. Mach3 and its parallel port driver communicate with the machine hardware through one paralelports or printer ports. lf your computer does not have a parallel port, you can buy a motion controler board from a thirdparty vendor that uses a USB port or Ethernet for communication. Use of a motion controller board can removeconsiderable processing load from the computer, so you may want to consider using one to get the performanceadvantage even if your computer does have a parallel port available. Mach3 generates step pulses and direction signals toperform the steps defined by a GCode part program and sends them to the port or motion controller board. The driversfor your machine's axis motors must accept March3's step pulses and direction signals. Virtually all stepper motor driverswork like this, as do modern DC and AC servo systems with digital encoders. Beware if you are converting an old NCmachine whose servos may use resolvers to measure position of the axes as vou will have to provide a complete newdrive for each axis. To set up a CNC system to use Mach3 software, you must installthe Mach3 CNC controller sotwareon your computer, and properly connect your motor drives to the computer's ports.

Mach3 Installation

Computer Operating System Requirements For Parallel Port:

1. Desktop PC (Laptops are not supported) with at least one parallel port.

2. 32-bit version of Windows 2000, Windows XP, Windows Vista, or Windows 7. (64-bit versions wil not be supported)

3. 1Ghz CPU. 512MB RAM.

4. Non-integrated Video Card with 32MB RAM. (Large G-code files, especially 3D files wilrequire a video card with512MB RAM or higher)

Computer Operating System Requirements With An External Motion Device:

1. An external motion controller. (USB UC100, or Ethernet Smooth Stepper, etc.)

2. Desktop or Laptop with Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 or Windows 10.

3. 1Ghz CPU. 512MB RAM.

4. Video Card with 32MB RAM. (Large G-code fles, especialy 3D files will require a video card with 512MB RAM orhigher)

If you already have an old version of Mach3 instaled on your computer, you can installthe new version on top of it. You donot need to uninstall the old version first.

1. Turn Off The PC, The CNC Machine Tool, And lts Drives

2. Switch The PC Back On.

3. Run The Mach3 CNC Software Installation Package.

When you run the downloaded fle, you willbe guided through the usual installation steps for a windows program such asaccepting the license conditions and selecting the folder for Mach3. STyLECNC recommends that you allow Mach3 touse its default installation folder "C: Mach3". You will be asked if you want to install various program components, asshown in Fiqure 1:

4. Select Program Components Screen.

1614567754586283

Figure1

create a custom profile, as shown in Figure 2:

When you have selected the components you want, click the Next button. The installation procedure wil ask if you want to

5. Create A Custom Profile Screen.

1614568239717583

Figure 2

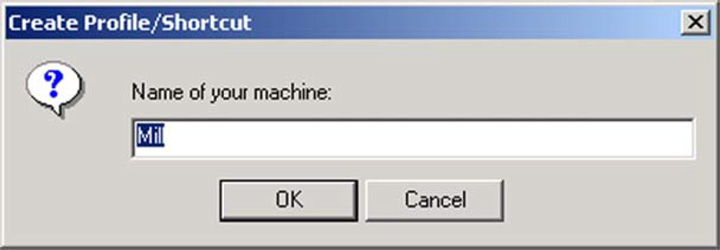

For example, lf you click the "Mill Profile" button, the screen shown in Fiaure 3 appears. Of course, you should choose theright profile button for your CNC machine tool.

6. Create "Mill Profile".

1614568669648057

Figure 3

Enter the name you want to assign to the profile and click the "OK" button. lf you want, you can create several differentprofiles. When you have created your custom profile, click the "Next" button.

7. Vital Reboot.

You must reboot Windows before running Mach3 software. This reboot is vital. lf you do not do it, you wil get into greatdificulties which can only be overcome by using the "Windows Control Panel" to uninstallthe driver manually. So pleasereboot now.

8. Testing Mach3 Installation With Your CNC Machine.

Up to now, Mach3 CNC controller software is installed, we hope you can enjoy this software with your CNc machine tool
