Product Description
High Precision 5 Axis cnc Metal Machining Center Gantry CNC Milling Machine
Application:
This 5axis cnc milling machine is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
| Specifications | Units | ART1016 |
| Table size | mm | 1000x1600 |
| X axis travel | mm | 1000 |
| Y axis travel | mm | 1600 |
| Z axis travel | mm | 800 |
| A axis travel | ° | 360° |
| C axis travel | ° | 280° |
| Max. worktable load | kg | 400 |
| T slot(number-width-pitch) | 3-18x125 | |
| Max. spindle speed | rpm | 8000(Optional:10000 ) |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | Linear rail | |
| Distance from spindle axis to column surface | mm | 469 |
| Distance between spindle nose and worktable surface | mm | 100-600 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | 16 Armless/(Optional: Arm 24 ) | |
| Max. tool diameter | mm | φ90 |
| Max.tool weight | kg | 8 |
| Machine weight | kg | 4000 |
| Overall dimension | mm | 2400x2000x2550 |

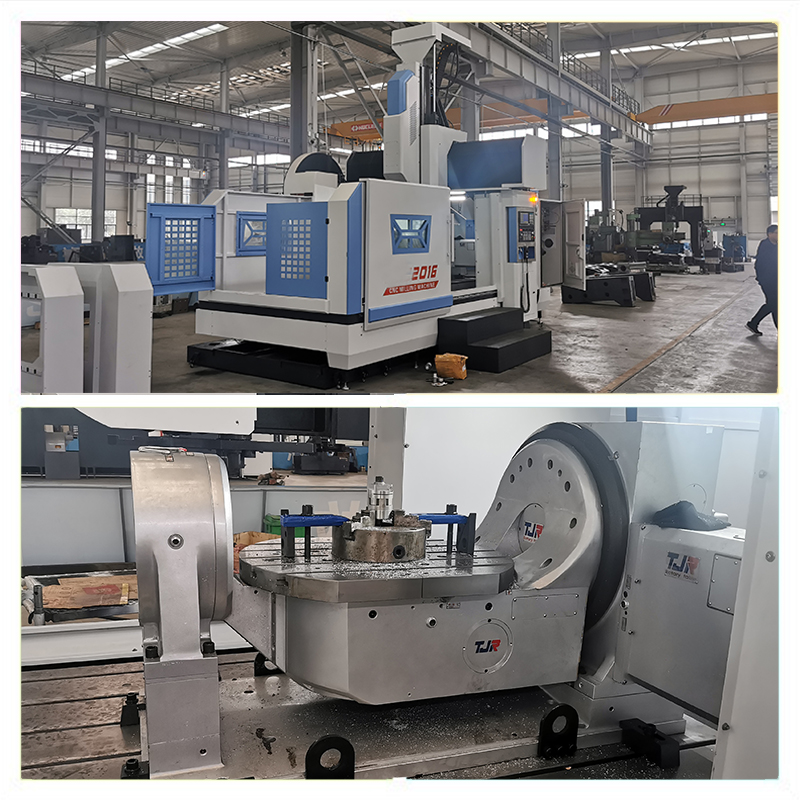

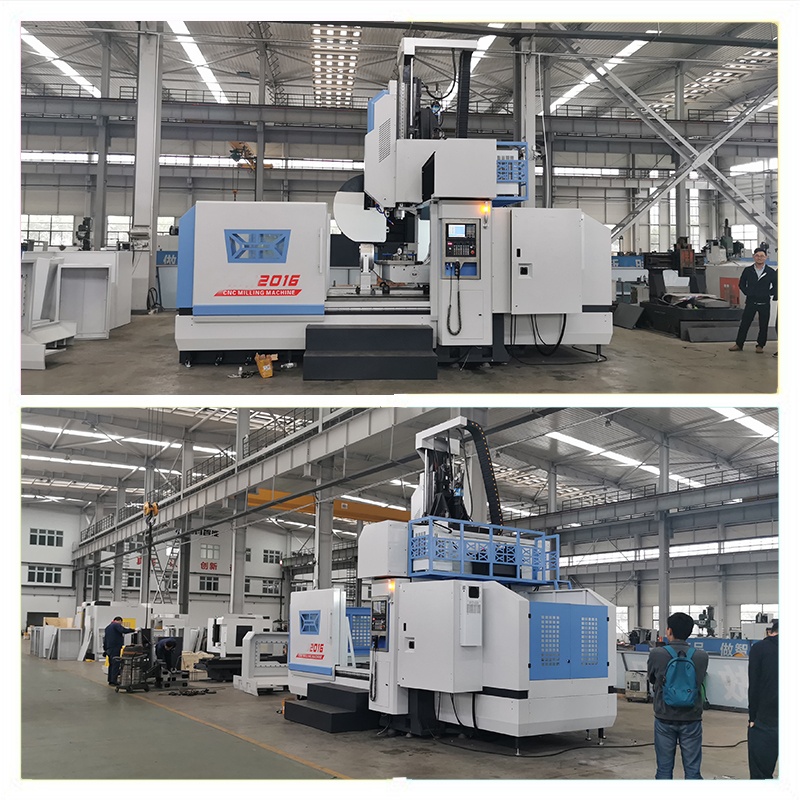

High Precision 5 Axis cnc Metal Machining Center gantry CNC Milling Machine
