ART-2060
ARTECH
8465990000
Product Description
1. Ball screw for Z axis.It's stable running,precision and fast.
2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.
3. With Syntec control system,easy to learn design software,just install it onto your
computer and start creating paterns.

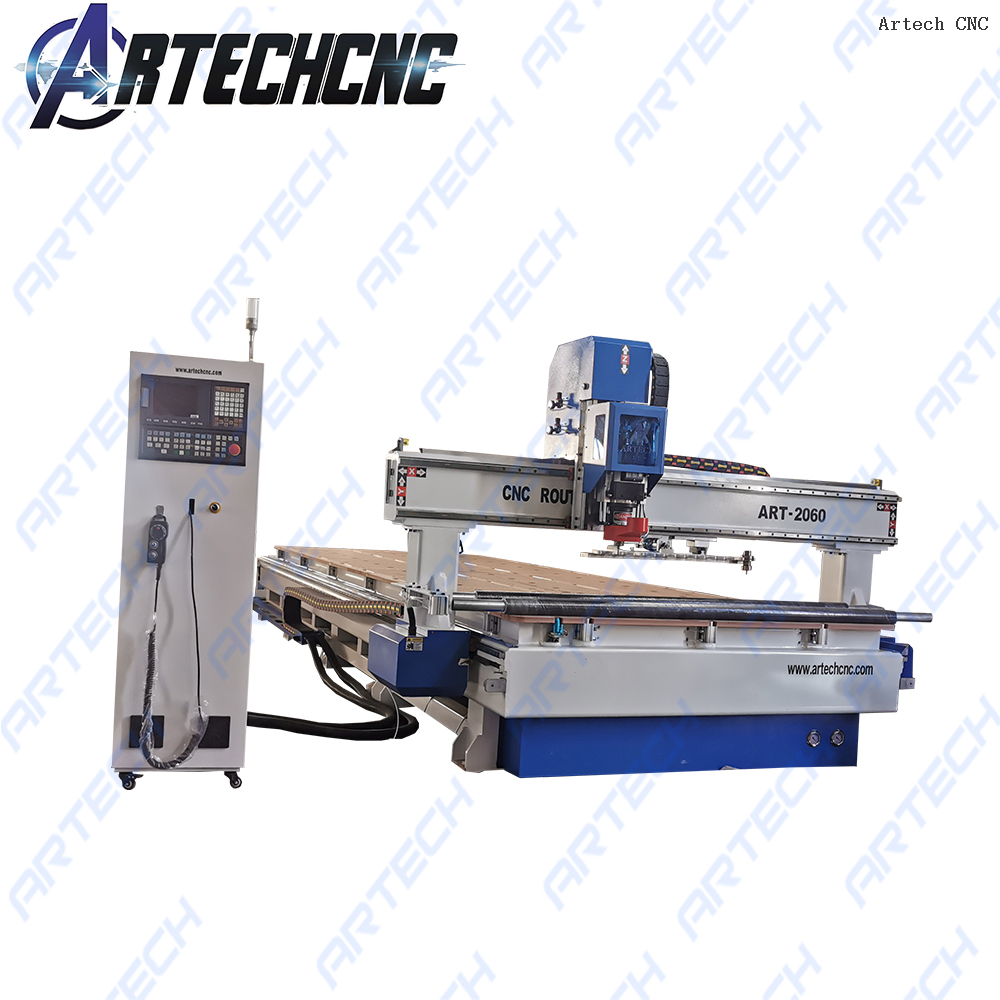

4. This atc wood cnc router designed with auto tool changer.Differents tool can
be installed in tool holder.Spindle working one by one,more convenient to change the tool,
high efficiency and save time.
5. Heavy duty frame and gantry,very strong and stability.
Parameters | Standard Specifications |
X Y Z axis working area | 2000x6000x200mm |
Spindle | 12kw water cooling spindle |
X Y Z traveling positioning accuracy | +-0.01/2000mm |
Table | vacuum table or T.slot table |
Inverter | Fuling |
Vacuum pump | air cooling7.5kw pump |
X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
Max.rapid travel rate | 50000mm/min |
Max.working speed | 30000mm/min |
Spindle speed | 24000RPM |
Driver motors | Japanese Servo motor and drivers |
Working voltage | 220V/380V/50HZ/60hz |
Command language | G code |
Control system | Syntec or NC studio/DSP/Mach3 |
Software compatibility | Option:Artcam,Ucancam,Type3 |
Running environment | Temperature:0~45℃ Relative humidity:30%~75% |
Oil system | Automatic |
Frame structure | Welding structure |
Video
Sample
Service
1) Engineers available to service machinery overseas.
2) 1 year guarantee for whole machine.
3) Technical support by phone,email,whatsapp and skype.If you have any problems,
we will within 12 hours to solve it.
4) You will be get free training advice towards our machine in our factory.
5) If you need any component of the machine,we will provide the best price for you.
6) Friendly English version manual and operation video CD disk.
