Product Description
Mini cnc router table moving
1)Integral cast iron frame,more durability.
2)DSP control system with USB port,just need the handle to operate machine,easy and convenient.
3)Water mist cooling sprayer with water tank: very suitable for processing soft metal, like aluminum, copper, etc.
NO. | Model | ART-6060T |
1 | Working area | 600x600x100mm |
2 | Table size | 1450x1150mm |
3 | Working table | T-slot table and PVC plate |
4 | spindle | 2.2KW water cooling spindle |
5 | Cooling system | Water cooling |
6 | Control system | DSP |
7 | inverter | Fuling |
8 | transmission | X,Y,Z-ball screw |
9 | Guide rail | Round rail |
10 | Ball screw | TBI ball screw from Taiwan |
11 | Drive system | Leadshine driving system and stepper motor |
12 | Body | Square tube welding body |
13 | Spindle speed | 24000r/min |
14 | Control software | Artcam/Type3,other CAD/CAM |
15 | Traveling speed | 10m/min |
16 | Working speed | 8m/min |
17 | Reposition accuracy | 0.02mm |
18 | Command code | G Code*.u00*.mmg*.plt |
Sample

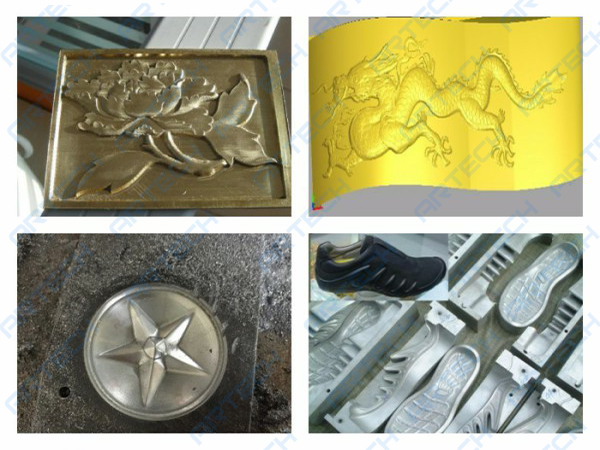

Mini cnc router table moving samples
Sevice
Mini cnc router table moving service
