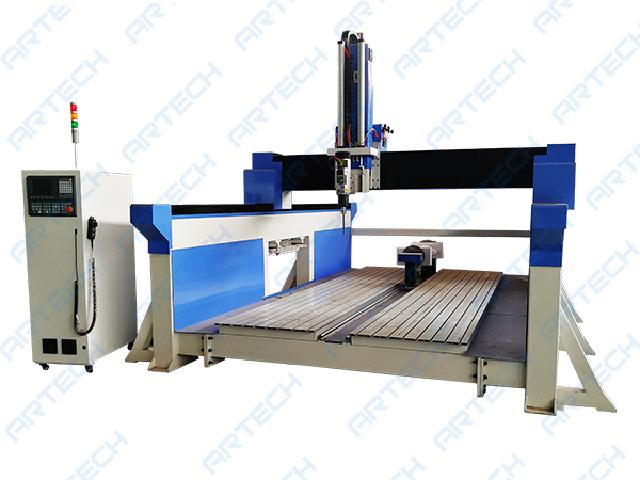

ART2040F Styrofoam EPS Cnc Mold Engraving Foam 4 Axis Cnc Router

Quantity:

Styrofaoam eps cnc mold engraving foam 4 axis cnc router

1. Syntec control system,with high performance and competitive price.

2. HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise,

it can ensure the machine working for long time.

3. Original YASKAWA Servo motors & drivers from Japan, ensure the machine’s

stronger strength and high accuracy.

4. Rotating head from Japan, it can make sure there are no gaps when spindle rotating.

5. The rotary is put on the table and the Z axis space is enlarge to give enough working

area for Z axis.Rotary cnc router  take extra jobs for removing but save width.

This cnc router machine also do cutting engraving for mould with auto tool changer.

Technical Parameter:

No.

Item

ART1530-F foam eps cnc router

Parameters

1

Working area

X

2000mm (Option :1300/3000 mm)

Y

4000mm (Option: 25000 mm)

Z

1200mm

2

Table

Size

1500x3000mm

Material

foam ,wood ....

3

Accuracy

Working Accuracy

±0.05mm

Repositioning Accuracy

±0.03mm

Straightness for X,Y,Z

±0.05/300mm

Verticality for X to Y

0.05/ m

Verticality for Z to X,Y

0.03/m

Straightness for table surface

0.05/500mm

Verticality for spindle

0.1/300mm

4

Structure

Table Structure

Whole Cast Steel

Transmission way of X,Y,Z

XY with HIWIN Linear rail, Z with Ball screw

5

Speed

Feed

1-10000mm/min

Rapid feed rates

X=12000mm/min

Y=12000mm/min

Z=10000mm/min

6

Spindle

Spindle Power

9.0KW  hQd Spindle

Spindle Speed

100-24000 RPM /min

Spindle taper

ISO 40

Spindle Nose to Table Top

150-1150mm

7

Driver


Japanese Yaskawa Servo motor

8

Working Voltage


AC380V/50Hz

9

Commend Code


G Code ,F/S Code Compatible

10

Operating System


Syntec

11

Net Weight


1800 KGS

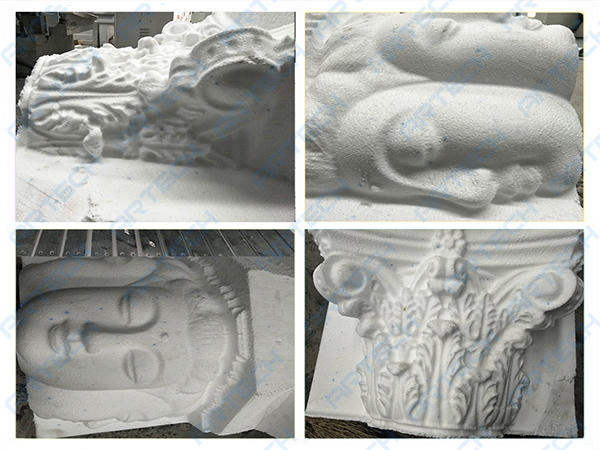

Sytrofoam eps cnc mold engraving foam 4 axis cnc router samples356930e3e90e24bfcb1259028bb66516_9k=

Styrofoam eps cnc mold engraving foam 4 axis cnc router service

1) 1year guarantee for whole machine from production date(except consumable parts)
within guarantee under normal use and maintenance,if something is wrong with the
machine,you will get spare part for free.

2) Technical support by phone,email,whatsapp and skype.Friendly English manual
and opperation video CD disk.Engineer available to service machinery overseas.
You will also get technical supporte and service all the lifetime.

3) Normal machine is properly adjusted before dispath.You will be able to use the
machine immediately after received machine.You will be able to get free training
advice towards our machine in our factory.
