ART2030 5axis Foam Car Boat Mold Making Cnc Router Machine

Quantity:

5 axis mold cnc router machine

1) OSAI control system from Italy, with high performance and competitive price.

Professional famous brand in 5 axis machine line.

2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise,

it can ensure the machine working for long time.

3) Original 1300W YASKAWA Servo motors & drivers from Japan, ensure the

 machine’s stronger strength and high accuracy.

4) Rotating head from Japan, it can make sure there are no gaps when spindle rotating.

Technical Parameter:

No.descriptionparameters
1X,Y,Z,C,AWorking Area:2000*3000*1000mm*210degree*180degree
2Table Size:5550*2840mm
3X,Y,Z Traveling Positioning Accuracy:±0.02/300mm
4X,Y,Z Repositioning Accuracy:±0.02 mm
5Table Surface:Milling Steel with T-slot Table
6Frame:heavy steel
7X,Y,Z Structure:Ball Screw
8Max. Power Consumption:14.2kw
9Max. Rapid Travel Rate:25,000mm/min
10Max. Working Speed:15,000mm/min
11Spindle Speed:0-24000 RPM
12Drive Motors:Yaskawa Servo
13Working Voltage:AC380V, 50/60Hz, 3PH (Option:220V)
14Command Language:G Code
15Operating System:Syntec Control System
16Computer Interface:CF Card, Ethernet
17Flash Memory:512M (U Disk)
18X,Y Resolution:< 0.02mm
19Software Compatibility:UGS, Alpha Cam, Becam, Type3, Ucancam V9
20Running Environment Temperature:0°-45°
21Relative Humidity:30%-75%
22Packing Size:3300x2200x2000mm(in parts)
23N.W.:3550kg
24G.W.:3840kg

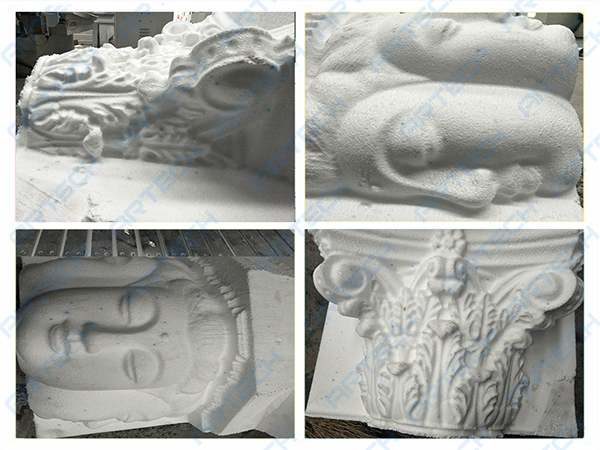

5 axis mold cnc router machine samples356930e3e90e24bfcb1259028bb66516_9k=

5 axis mold cnc router machine service

1) 1year guarantee for whole machine from production date(except consumable parts)
within guarantee under normal use and maintenance,if something is wrong with the
machine,you will get spare part for free.

2) Technical support by phone,email,whatsapp and skype.Friendly English manual
and opperation video CD disk.Engineer available to service machinery overseas.
You will also get technical supporte and service all the lifetime.

3) Normal machine is properly adjusted before dispath.You will be able to use the
machine immediately after received machine.You will be able to get free training
advice towards our machine in our factory.

4) 24 hours technical support by e-mail,caling service.If you have any problemse,
we will within 12 hours to slove it.

5) If you need any component of the machine later,we will provide the best price
for you.
