Product Description
Iron copper metal cnc plasma cutting machine techical parameter
Model | ART-1530P |
Lathe bed | Seamless welding steel |
X,Y, Z working area | 1500mm*3000mm*100mm |
Re-position precision | 0.02mm |
Processing precision | 0.2-0.5mm |
Maximum speed | 10000mm/min |
Maximum working speed | 8000mm/min |
Power consumption | 0-15kw |
Working voltage | 380V/50HZ |
Plasma power supply | China HUAYUAN LGK100A/US. Hyperthem |
Cutting thickness | Up to 15-25mm |
Control system | STARFIRE SF-2100S-BG |
Torch Height controller | Automatic AH1 |
Software | Fastcam from Australia |
Motors | stepper motor/servo |
Guide rail | Hiwin square guide rail from Taiwan |
Optional: | Air compressor |
Cooling system | Water chiller |
Consumables | Nozzles and electrodes |
Video
Sample

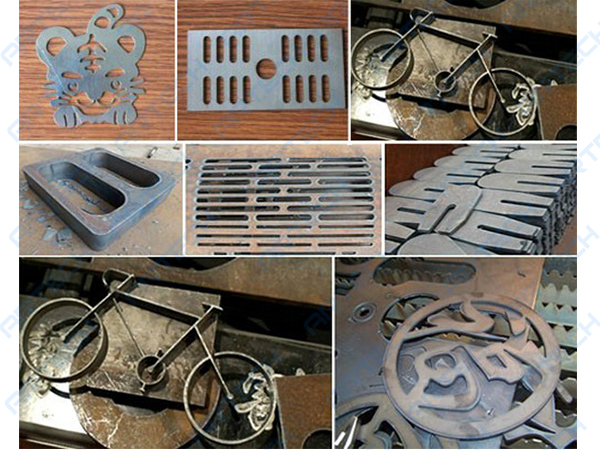

Iron copper metal cnc plasma cutting machine samples
Service
Iron copper metal plasma cutting machine service
