Home » Products » CNC Router Machine » 4 Axis Cnc Router » ART1530-F Foam EPS 4 Axis Cnc Router Engraver Machine
Share to:

ART1530-F Foam EPS 4 Axis Cnc Router Engraver Machine

Quantity:

ART1530F 4th axis Rotary cnc router cnc foam cutting machine

1. DSP control system with USB port,just need the handle to operate the machine,

easy and convenient.

2. HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise,

it can ensure the machine working for long time.

3. Original YASKAWA Servo motors & drivers from Japan, ensure the machine’s

stronger strength and high accuracy.

4. Rotating head from Japan, it can make sure there are no gaps when spindle rotating.

5. The rotary is put on the table and the Z axis space is enlarge to give enough working

area for Z axis.Rotary cnc router  take extra jobs for removing but save width.

Technical Parameter:

No.

Item

ART1325-F foam eps cnc router

Parameters

1

Working area

X

1500mm (Option :2000/3000 mm)

Y

3000mm (Option: 5000 mm)

Z

1200mm

2

Table

Size

1500x3000mm

Material

foam ,wood ....

3

Accuracy

Working Accuracy

±0.05mm

Repositioning Accuracy

±0.03mm

Straightness for X,Y,Z

±0.05/300mm

Verticality for X to Y

0.05/ m

Verticality for Z to X,Y

0.03/m

Straightness for table surface

0.05/500mm

Verticality for spindle

0.1/300mm

4

Structure

Table Structure

Whole Cast Steel

Transmission way of X,Y,Z

XY with HIWIN Linear rail, Z with Ball screw

5

Speed

Feed

1-10000mm/min

Rapid feed rates

X=12000mm/min

Y=12000mm/min

Z=10000mm/min

6

Spindle

Spindle Power

6.0KW  hsd Spindle made in Italy

Spindle Speed

100-24000 RPM /min

Spindle taper

ISO 40

Spindle Nose to Table Top

150-1150mm

7

Driver


Japanese Yaskawa Servo motor

8

Working Voltage


AC380V/50Hz

9

Commend Code


G Code ,F/S Code Compatible

10

Operating System


DSP A18

11

Net Weight


1800 KGS

Foam eps 4 axis cnc router engraver machine

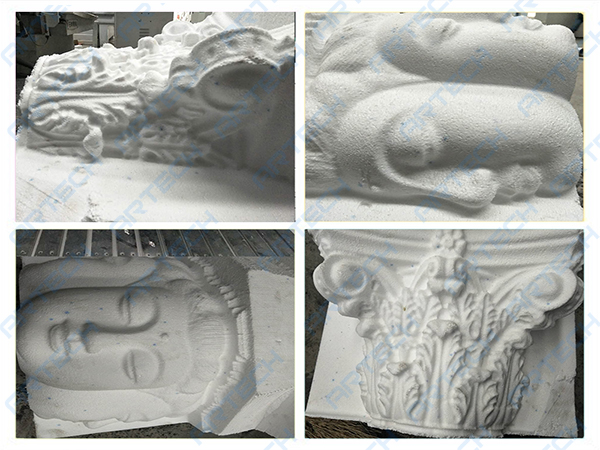

Foam eps 4 axis cnc router engraver machine samples356930e3e90e24bfcb1259028bb66516_9k=

Foam eps 4 axis cnc router engraver machine service

1) 1year guarantee for whole machine from production date(except consumable parts)

within guarantee under normal use and maintenance,if something is wrong with the

machine,you will get spare part for free.



2) Technical support by phone,email,whatsapp and skype.Friendly English manual

and opperation video CD disk.Engineer available to service machinery overseas.

You will also get technical supporte and service all the lifetime.



3) Normal machine is properly adjusted before dispath.You will be able to use the

machine immediately after received machine.You will be able to get free training

advice towards our machine in our factory.
