Product Description
5 axis mold cnc wood carving machine
1) OSAI control system from Italy, with high performance and competitive price.
Professional famous brand in 5 axis machine line.
2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise,
it can ensure the machine working for long time.
3) Original 1300W YASKAWA Servo motors & drivers from Japan, ensure the
machine’s stronger strength and high accuracy.
4) Rotating head from Japan, it can make sure there are no gaps when spindle rotating.
Technical Parameter:
Number | Description | parameter |
1 | X Y Z C A Axis working area | 1500*3000*800mm* 262degree*120degree |
2 | Table size | 1500*3000*600 mm |
3 | Positioning accuracy | ±0.02/300mm |
4 | Reposition positioning accuracy | ±0.02/300mm |
5 | Table | Moveable Milling steel (with T-slot) |
6 | Frame | Cast iron (heavy steel) |
7 | Drive system X axis | Rack and pinion |
8 | Drive system Z, Y axis | Ball screw |
9 | Max power consumption | 14.2KW |
10 | Max rapid | 25000mm/min |
11 | Max working speed | 15000mm/min |
12 | Spindle | italian HSD 7kw 5 axis 20000rmp HSK F63 |
13 | work mode | Yaskawa servo |
14 | Working voltage | AC380V (220V) |
15 | Command language | G code |
16 | Interface | CF card, ethernet |
17 | Operating system | Osai |
18 | Flash memory | 512M |
19 | X-Y resolution | 0.02/300mm |
20 | Software | UGS, Alpha Cam,Becam |
21 | Running | Temperature:0 -45 centigrade |
22 | Packing size | 4500*4800*3300mm |
23 | Net weight | 4500KG |
24 | Gross weight | 4600KG |
5 axis cnc wood carving machine
video
sample

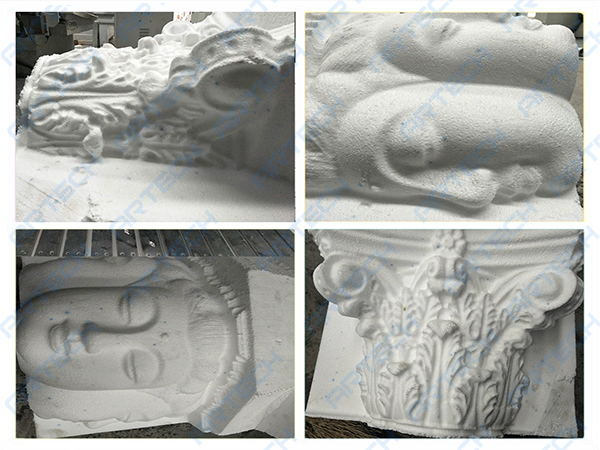

5 axis mold cnc wood carving machine samples
service
5 axis mold cnc wood carving machine service
1) 1year guarantee for whole machine from production date(except consumable parts)
within guarantee under normal use and maintenance,if something is wrong with the
machine,you will get spare part for free.
2) Technical support by phone,email,whatsapp and skype.Friendly English manual
and opperation video CD disk.Engineer available to service machinery overseas.
You will also get technical supporte and service all the lifetime.
3) Normal machine is properly adjusted before dispath.You will be able to use the
machine immediately after received machine.You will be able to get free training
advice towards our machine in our factory.
4) 24 hours technical support by e-mail,caling service.If you have any problemse,
we will within 12 hours to slove it.
5) If you need any component of the machine later,we will provide the best price
for you.
