ART1510S 3 Axis Stone Cnc Router

Quantity:

3 axis stone cnc router machine

1)This stone cnc router machine was designed with Water Cooling Spindle.

2)Water tank with mist cooling sprayer,protect the spindle and prolong the using life.

3)NC studio control system,ecomonic and durable.

4)Table is low height,convenient to put the materials on the working table.

Model

ART1510s cnc router machine

X,Y,Z Working area

1500*1000*200mm

Spindle power

5.5kw water cooling spindle

Spindle speed24000rpm/min

Inverter

fuling inverter

Table structure

T.slot

Frame

Steel square tubes

Transmission type

X Y rack pinion,Z ball screw

Max.travelling speed

50000mm/min

Max.working speed

30000mm/min

Positioning accuracy

+_0.01/200mm

Motor and drives

Hybride servo motors

Command languageG code*u00*mmg*plt
Working voltage380v/3 phase/50 hz
RotaryDiameter 110mm
Dust collectoroption
Control systemNC studio
SoftwareARTCAM/Type3
CollectER25
Net weight1500KG


3 axis stone cnc router machine

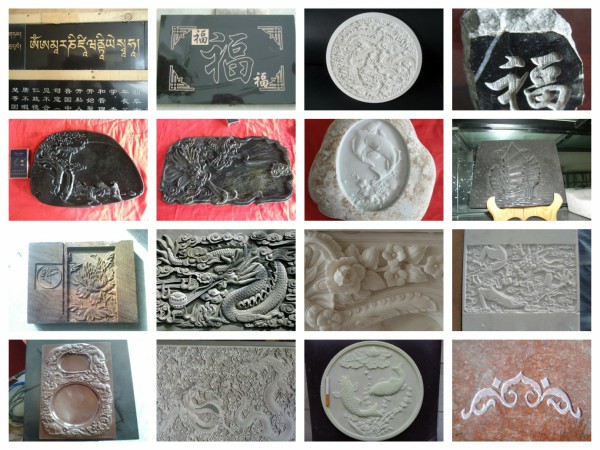

2 head 4 axis stone engraving cnc router with rotary samples

3 axis stone cnc router service

1) 1year guarantee for whole machine from production date(except consumable parts)
within guarantee under normal use and maintenance,if something is wrong with the
machine,you will get spare part for free.

2) Technical support by phone,email,whatsapp and skype.Friendly English manual and
opperation video CD disk.Engineer available to service machinery overseas.You will
also get technical supporte and service all the lifetime.

3) Normal machine is properly adjusted before dispath.You will be able to use the
machine immediately after received machine.You will be able to get free training
advice towards our machine in our factory.

4) 24 hours technical support by e-mail, calling service If you have any problems,
we will within 12 hours to solve it .

5) If you need any component of the machine later ,we will provide the best
 price for you.
