ART1325T-2 2 Head 4 Axis Stone Engraving Cnc Router with Rotary

Quantity:

2 head 4 axis stone engraving cnc router with rotary

1. Ball screw for Z axis.It's stable running,precision and fast.

2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.

3. With NC studio control system,easy to learn design software,just put it onto your

computer and start creating patterns.

4. The rotary is put on the table and the Z axis space is enlarge to give enough

working area for Z axis.Rotary cnc router take extra jobs for removing but save width.

5. Powerrful 5.5kw water cooling spindle,perfect working for stone.



There are another model rotary cnc router that no need to remove the rotary whenever

you work on flat bed or rotary,you just need to move the spindle over flat bed or rotary

each by the controller.


Technical Parameter:

Model

ART1325T-2 cnc router machine

X,Y,Z Working area

1300*2500*200mm

Spindle power

5.5kw water cooling spindle

Spindle speed24000rpm/min

Inverter

fuling inverter

Table structure

T.slot with rotary

Frame

Steel square tubes

Transmission type

X Y rack pinion,Z ball screw

Max.travelling speed

50000mm/min

Max.working speed

30000mm/min

Positioning accuracy

+_0.01/200mm

Motor and drives

servo motors

Command languageG code*u00*mmg*plt
Working voltage220v/50 hz
RotaryDiameter 110mm
Dust collectoroption
Control systemNCstudio
SoftwareARTCAM/Type3
CollectER25
Net weight1500KG

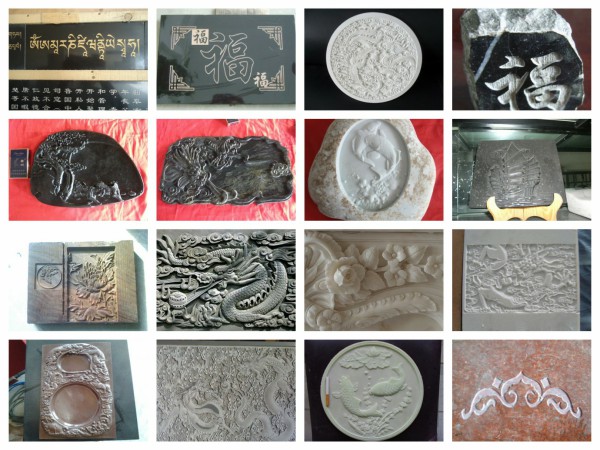

2 head 4 axis stone engraving cnc router with rotary samplesengraving cnc router with rotary samples


2 head 4 axis stone engraving cnc router with rotary service

1) 1year guarantee for whole machine from production date(except consumable parts)

within guarantee under normal use and maintenance,if something is wrong with the

machine,you will get spare part for free.



2) Technical support by phone,email,whatsapp and skype.Friendly English manual

and opperation video CD disk.Engineer available to service machinery overseas.

You will also get technical supporte and service all the lifetime.



3) Normal machine is properly adjusted before dispath.You will be able to use the

machine immediately after received machine.You will be able to get free training

advice towards our machine in our factory.

4) 24 hours technical support by e-mail, calling service If you have any problems,

we will within 12 hours to solve it .



5) If you need any component of the machine later ,we will provide the best price

 for you.
