ART1325-5 Axis Cnc Wood Carving Machine for Wood Foam Mold Making

Quantity:

5 axis cnc wood carving machine for wood foam mold making

1) OSAI control system from Italy, with high performance and competitive price.

Professional famous brand in 5 axis machine line.

2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise,

it can ensure the machine working for long time.

3) Original 1300W YASKAWA Servo motors & drivers from Japan, ensure the

machine’s stronger strength and high accuracy.

4) Rotating head from Japan, it can make sure there are no gaps when spindle rotating.

Technical Parameter:

No.DescriptionParameter
1X,Y,Z,C,AWorking Area:1300*2500*00mm*210degree*180degree
2Table Size:1550*2840mm
3X,Y,Z Traveling Positioning Accuracy:±0.02/300mm
4X,Y,Z Repositioning Accuracy:±0.02 mm
5Table Surface:Moveable Milling Steel with T-slot Table
6Frame:Cast Iron (heavy steel)
7X,Y,Z Structure:Ball Screw
8Max. Power Consumption:14.2kw
9Max. Rapid Travel Rate:25,000mm/min
10Max. Working Speed:15,000mm/min
11Spindle Speed:0-24000 RPM
12Drive Motors:Yaskawa Servo
13Working Voltage:AC380V, 50/60Hz, 3PH (Option:220V)
14Command Language:G Code
15Operating System:Syntec Control System
16Computer Interface:CF Card, Ethernet
17Flash Memory:512M (U Disk)
18X,Y Resolution:< 0.02mm
19Software Compatibility:UGS, Alpha Cam, Becam, Type3, Ucancam V9
20Running Environment Temperature:0°-45°
21Relative Humidity:30%-75%
22Packing Size:3300x2200x2000mm(in parts)
23N.W.:2500kg
24G.W.:2600kg

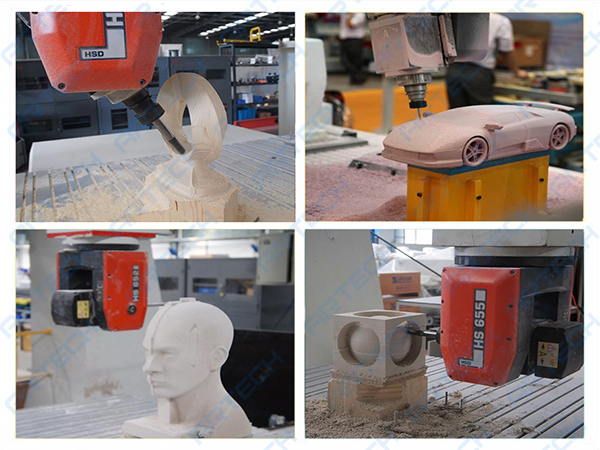

5 axis cnc wood carving machine for wood foam making samplese69ynjcISoip2g0sl4EExA

5 axis cnc wood carving machine for wood foam mold making service

1) 1year guarantee for whole machine from production date(except consumable parts)

within guarantee under normal use and maintenance,if something is wrong with the

machine,you will get spare part for free.



2) Technical support by phone,email,whatsapp and skype.Friendly English manual

and opperation video CD disk.Engineer available to service machinery overseas.

You will also get technical supporte and service all the lifetime.



3) Normal machine is properly adjusted before dispath.You will be able to use the

machine immediately after received machine.You will be able to get free training

advice towards our machine in our factory.

4) 24 hours technical support by e-mail, calling service If you have any problems,

we will within 12 hours to slove it.

5) If you need any component of the machine later ,we will provide the best price for you.
