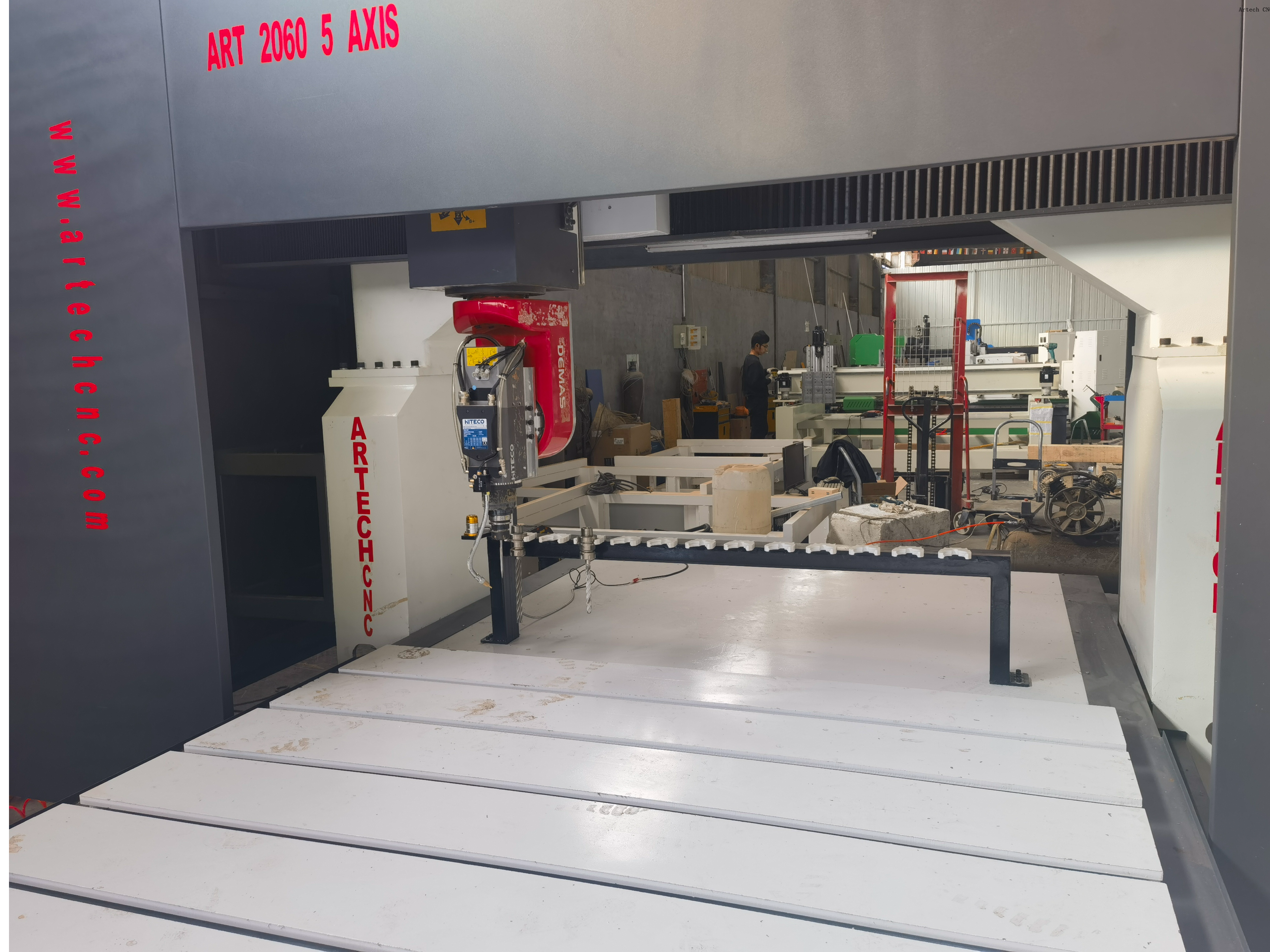

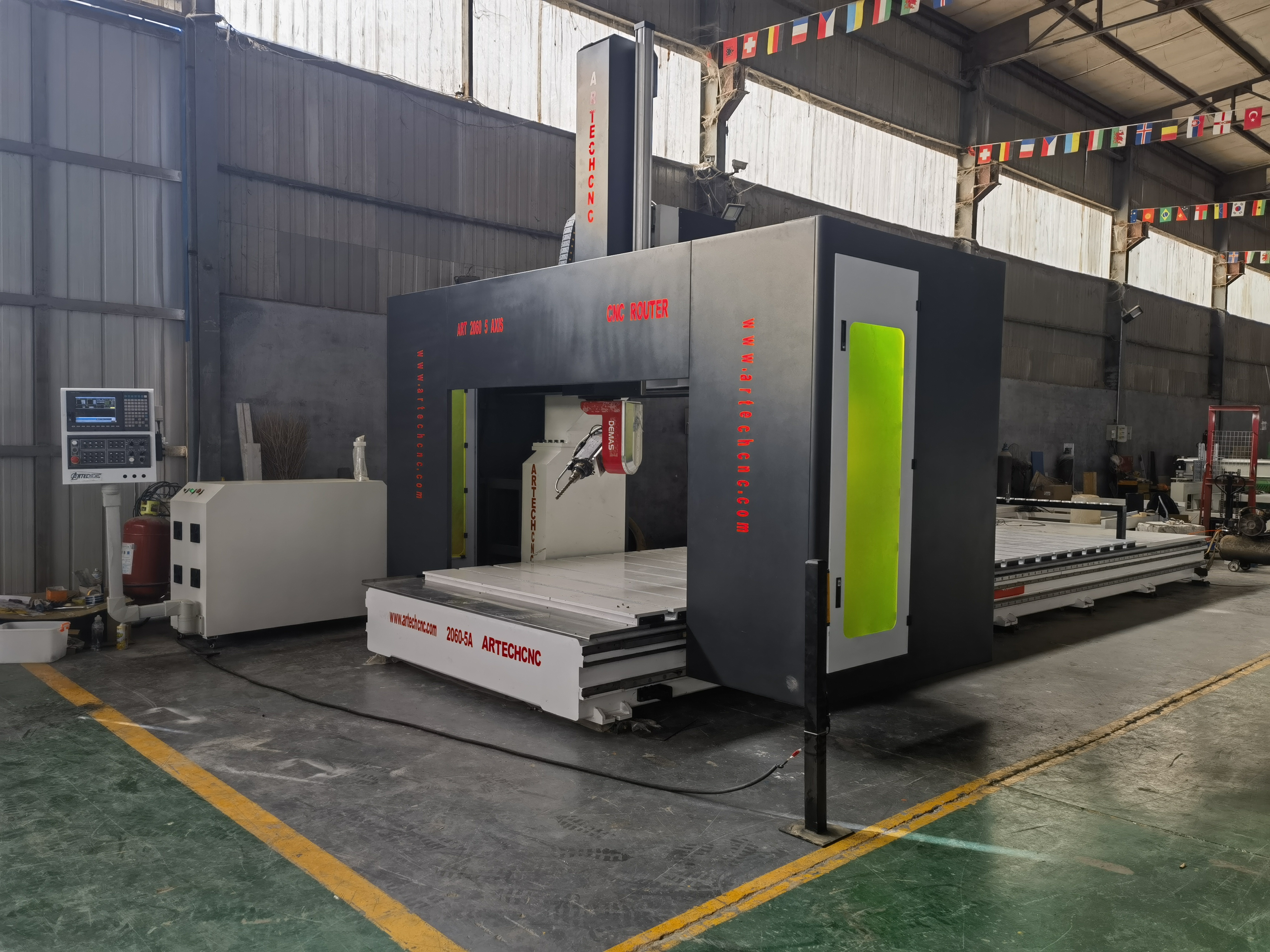

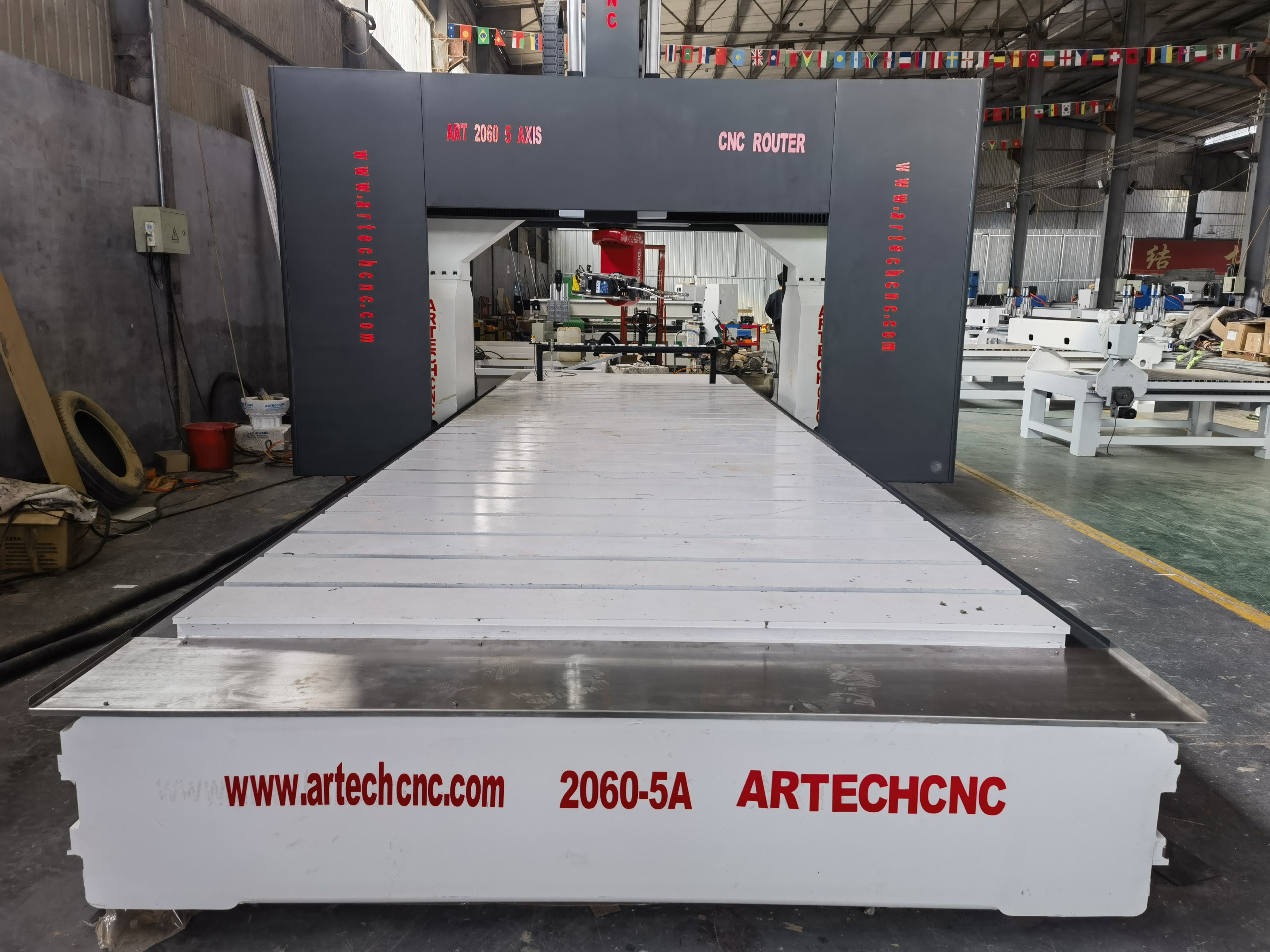

ART-20605axis
ARTECH CNC
8465990000
Product Description
| No. | Description | Parametrs |
| 1 | Working Area | 2000x6000x1200mm |
| 2 | Table Size: | 2300*8700mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.05/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.05 mm |
| 5 | Table Surface: | Milling Steel with T-slot Table |
| 6 | Frame: | Welding Iron (heavy steel) |
| 7 | X,Y,Z Structure: | XY gear rack , Z axis Ball Screw |
| 8 | Max. Power Consumption: | 14.2kw |
| 9 | Max. Rapid Travel Rate: | 25,000mm/min |
| 10 | Max. Working Speed: | 15,000mm/min |
| 11 | Spindle Speed: | 0-24000 RPM |
| 12 | Drive Motors: | Syntec Servo |
| 13 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 14 | Command Language: | G Code |
| 15 | Operating System: | Syntec Control System |
| 16 | Computer Interface: | CF Card, Ethernet |
| 17 | Flash Memory: | 512M (U Disk) |
| 18 | X,Y Resolution: | < 0.02mm |
| 19 | Software Compatibility: | UGS, Alpha Cam, Becam, Type3, Ucancam V9 |
| 20 | Running Environment Temperature: | 0°-45° |
| 21 | Relative Humidity: | 30%-75% |
| 22 | Packing Size: | 3300x5000x2000mm(in parts) |
| 23 | N.W.: | 12000kg |
| 24 | G.W.: | 12500kg |
