Home » Products » UV Printer » ART-1313HUV Ceramic Glass Wood Digital 3d Printing Flatbed Printer
Share to:

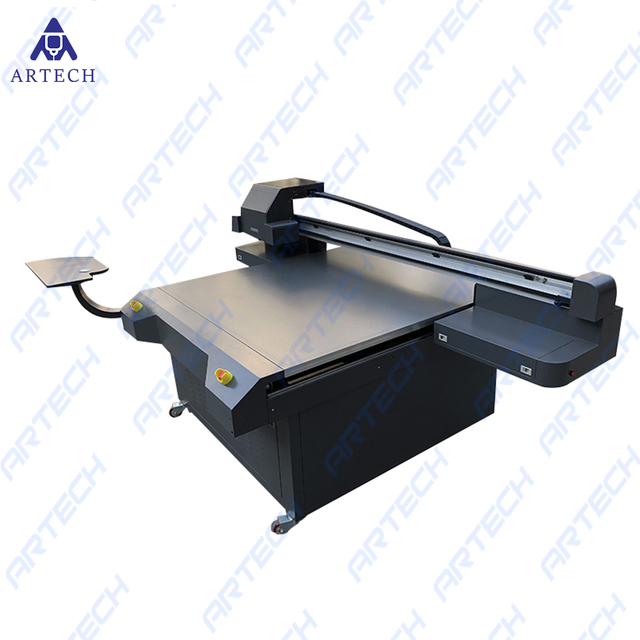

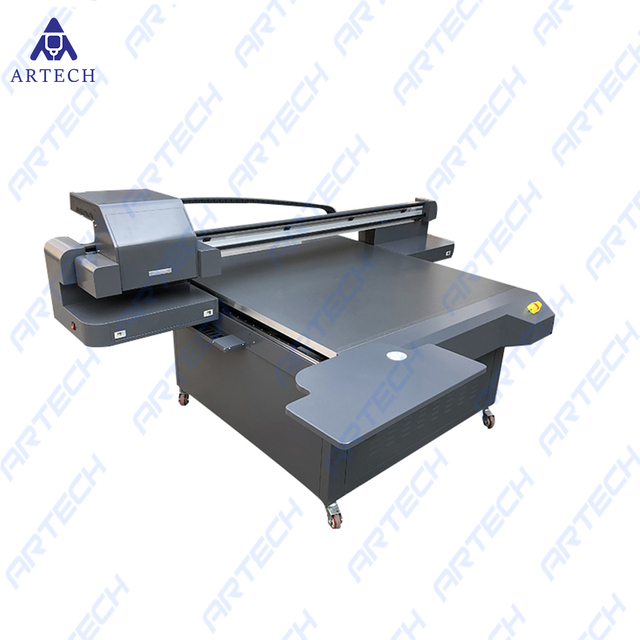

ART-1313HUV Ceramic Glass Wood Digital 3d Printing Flatbed Printer

Quantity:

ART-1313HUV  ceramic glass wood digital 3d printing flatbed printer

l Japanese imported EPSON DX5/DX7/XP600/TX800 heads and RICOH GEN5, RICOH GH2220,

TOSHIBA CE4 heads optional

l CMYK white and varnish optional for glossy surface and high quality printing

l Upgraded negative pressure system to ensure high accuracy 0.01kp difference for high quality printing performance

l Vacuum bed to hold the flexible media like PVC, foam board, acrylic sheet etc.

l Applications in advertising& signage industry and decoration industry

Product Model

ART1313HUV 3D uv printer

Printhead Technology

Drop-on demand piezo electric

Printhead Control

Printhead voltage is software adjustable

Printhead Type

EPSON DX5/DX7/XP600/TX800/RICOH GH2220

Printhead Number

2/3/4/6/8

Ink Characteristics

UV Curing Ink

Ink Reservoirs

Refillable on the fly while printing/1000ml per color

LED UV Lamp

More than 20000-hours life

Color Control

ICC based color, curves and density adjustment

Printhead Arrangement

CMYKW varnish optional          3-12sqm/h

Cleaning System

Automatic Cleaning System, Automatic Dry-preventing System

Guide Rail

Taiwan HIWIN

Working Table

Vacuum Sucking

Printing Size

1300*1300mm

Print Interface

USB2.0

Media Thickness

0-100mm, higher can be customized

Print Resolution

360*1080dpi, 720*720dpi, 720*1080dpu,720*1440dpi

Life of Printed Image

3 years(outdoor),10years(indoor)

File Format

TIFF,JPEG,Postscript,EPS,PDF etc.

RIP Software

RipPrint/ Photoprint

Power Supply

220V 50/60Hz(10%) or as as per customer requirement

Powder

1100W

Operation Environment

Temperature 20 to 30℃, Humidity 40% to 60%

Machine Dimension

1760*2500*1200mm

Packing Dimension

1960*2700*1350mm

Weight

 600kg

Warranty

12 Months exclude the consumables

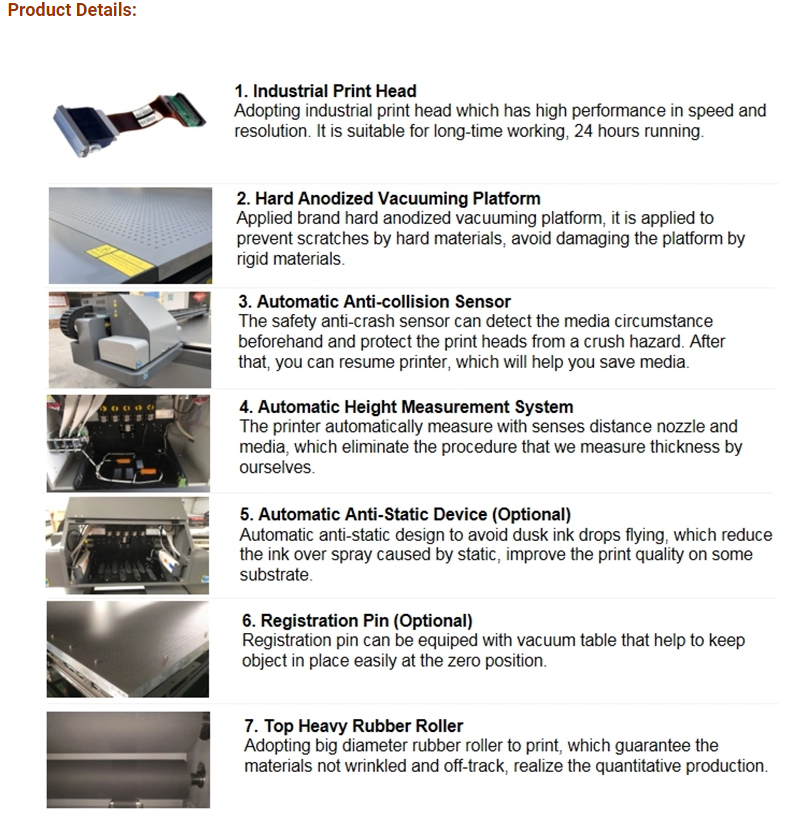

ART-1313HUV6


ART6090UV uv printer machine6
