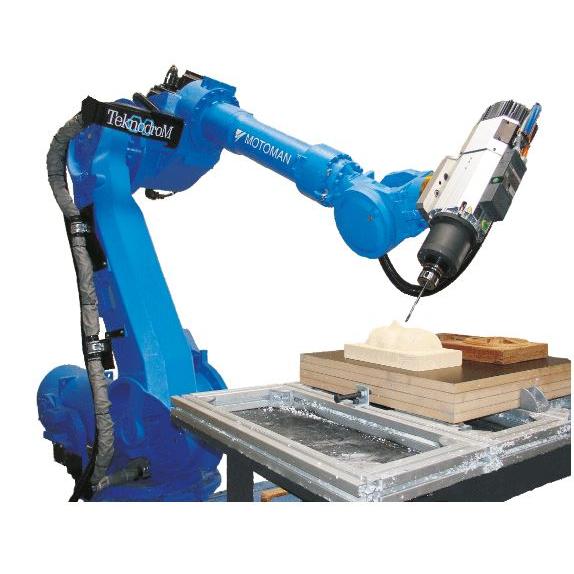

The robot cnc router Is controlled by an industrial robot arm electric spindle (the electric spindle in the
mechanical arm can be processed at any Angle within the scope of work, as well as multiple spindle automatic
programming software (SmartMill) and used to control the operation of mechanical arm (RobCode), the software
can realize the automation of complex three-dimensional modelling sculpture processing
Company Introduction
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and
good efficient CNC machines worldwide. With a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving
machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser
cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
| Robot arm | Yaskawa |
| Controller | Yaskawa YRC1000 |
| Motor | Japanese Yaskawa |
| load | 50kgs |
| repeat accuracy | +-0.07 |
| Spindle | 6kw |
| Rotary | 600mm diameter |
| ARM L | 1500MM |
Robot arm has six axis of rotation, if you have needs, you can add other axis, for example, controlled by the blessing of
workpiece rotary worktable system, or mobile robots can install in a robot on the guide rail mobile base, suitable for
processing a large product

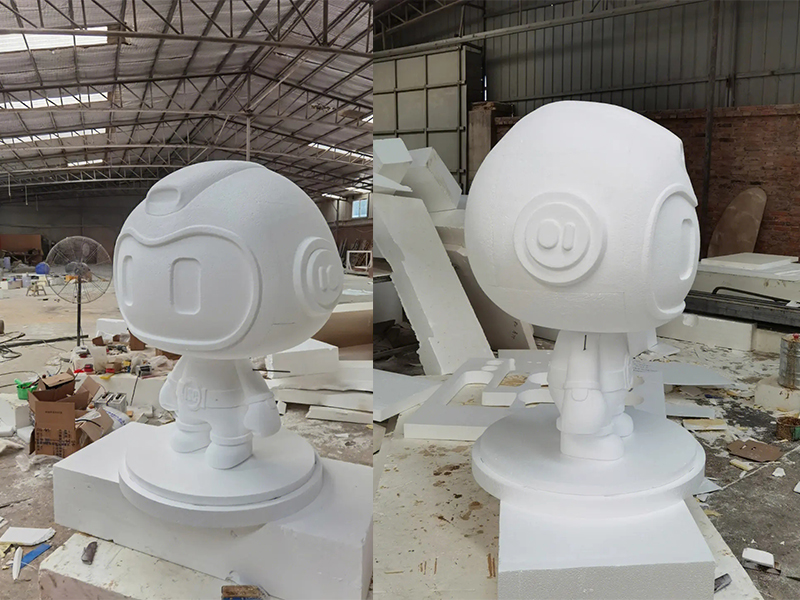

Application fields : senior sculpture handicraft, wood carving handicraft processing, non-metallic mold machining,
casting products, sanitary ware products model processing, etc. Robot working process: 1:Through the three-dimensional
modeling software (such as ZBRUSH, FF engraving pen, 3D Max, Rhino, Maya, etc.) designed to get 3D model of the product,
or by 3D scanning export 3D data sample. 2:With multiple spindle automatic programming software (SmartMill1.9) transferred to
3D data (STL) make up processing tool path , calculate the processing code (G code) 3:(RobCode) software will be 3-5 axis
machining cutter path carved into robot trajectory
Packing&Shipping
Package and Delivery of small wood cnc router: Package Detail:
1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity. And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 20 working days after payment;For non-standard machines
and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
