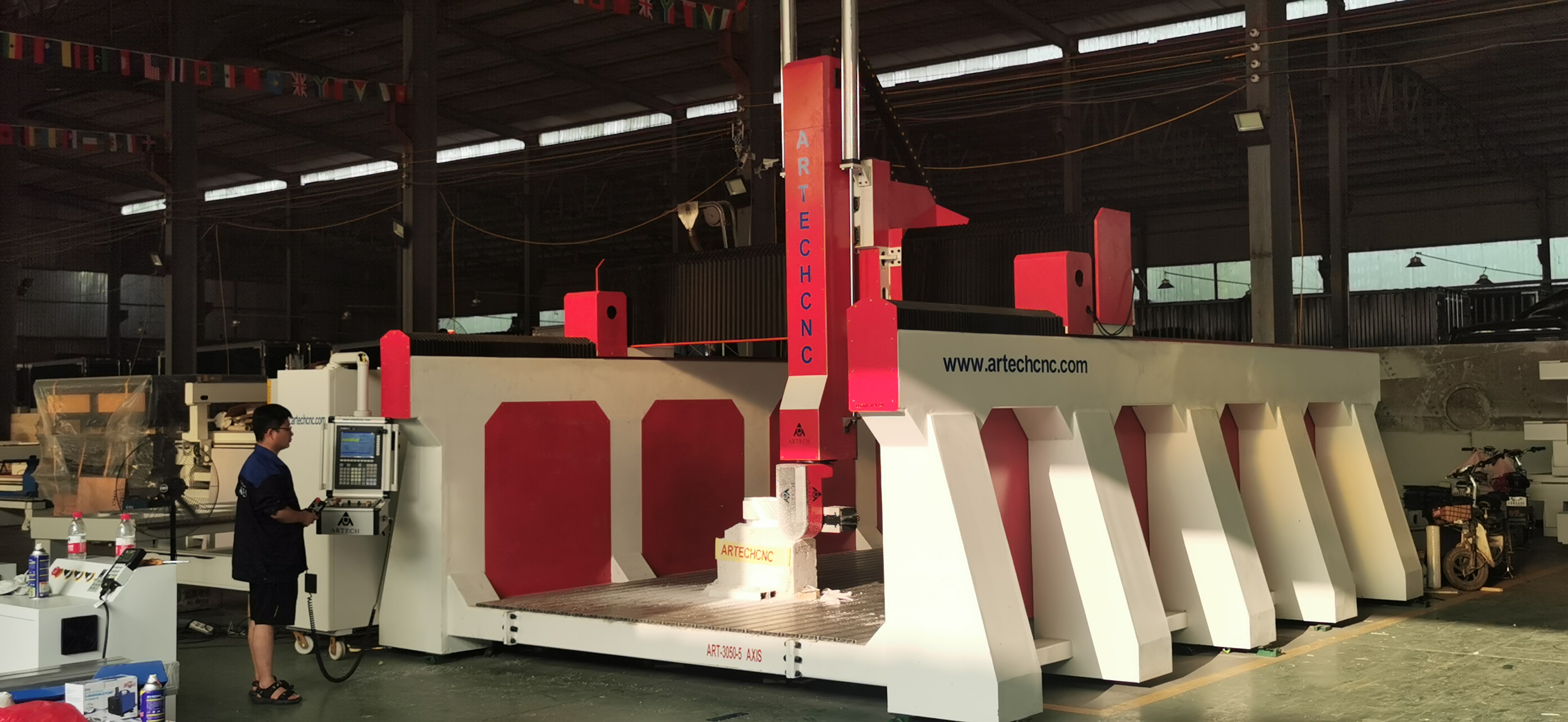

ART-3050-5AXIS
ARTECH
8465990000
Product Description
Feature of cnc router:
1. Guangshu control system with high performance and best price. Professional famous brand in 5 axis machine line.
2. Demas ATC air cooling spindle,with strong cutting ability, low noise, it can ensure the machine working for long time.
3. Original YASKAWA Servo motors & drivers from Japan, ensure the machine's stronger strength and high accuracy.
4.The rotary is put on the table and the Z axis space is enlarge to give enough working area for Z axis.Rotary cnc router take extra jobs for removing but save width.
5.This 5 axis cnc router designed with auto tool changer.Differents tool can be installed in tool holder.Spindle working one by one,more convenient to change the tool,high efficiency and save time.
6. Heavy duty frame and gantry,very strong and stability.
Technical Parameter:
Number | Main Description | Parameter |
1 | X Y Z A C 5 Axis Travel | 3000*5000*1300mm*+-110°*+-220° |
2 | Rotary Axis Working Area option | Diameter 600*Length 2000mm |
3 | 5 Axis Head | Demas |
4 | Operating System | GUANGSHU |
5 | Spindle | 9KW Air Cooling ATC |
6 | VFD Inverter | DELTA |
7 | Motor and driver | GUANGSHU |
8 | Reducer | GUANGSHU |
9 | Transmission system X Y axis | Gear Rack and guide rail pinion |
10 | Transmission system Z axis | Ball screw |
11 | Rails | Original 30mm Hiwin |
12 | Rack and Pinion | Herion |
13 | Ballscrew | TBI |
14 | Oil lubrication | Yes ,Automatic type |
15 | Spindle speed | 0-24000rmp |
16 | Traveling Speed | 60/60/20m/min |
17 | Working Speed | 20m/min |
18 | Working voltage | AC3~380V (240V option) |
19 | Software option | Powermill (lifelong) |
20 | Running | Temperature:0 -45 centigrade |
21 | Tool ATC | 8 pieces auto tools changer HSK-63F |
video

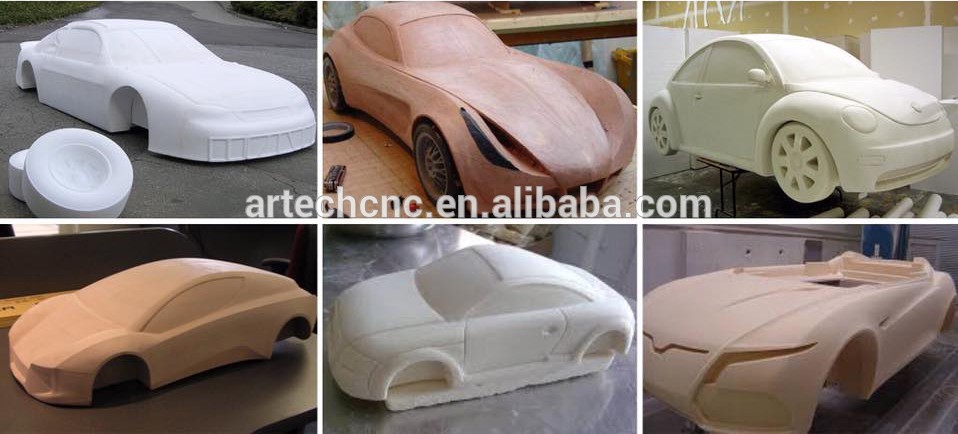

sample
service
1. Engineers availbal to service machinery overseas.
2. 1 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
