Home » Products » CNC Router Machine » 5 Axis Cnc Router » 5 Axis Cnc Router Milling Engraving Making Foam Mold Boat Car Wood Mold
Share to:

5 Axis Cnc Router Milling Engraving Making Foam Mold Boat Car Wood Mold

Working area 2100x4200x1100mm
Hiteco Spindle
Syntec Controller
Quantity:
No.DescriptionParametrs
1Working Area2100x4200x1200mm
2Table Size:2600*4700mm
3X,Y,Z Traveling Positioning Accuracy:±0.02/300mm
4X,Y,Z Repositioning Accuracy:±0.02 mm
5Table Surface:Moveable Milling Steel with T-slot Table
6Frame:Cast Iron (heavy steel)
7X,Y,Z Structure:Ball Screw
8Max. Power Consumption:14.2kw
9Max. Rapid Travel Rate:25,000mm/min
10Max. Working Speed:15,000mm/min
11Spindle Speed:0-24000 RPM
12Drive Motors:Yaskawa Servo
13Working Voltage:AC380V, 50/60Hz, 3PH (Option:220V)
14Command Language:G Code
15Operating System:Syntec Control System
16Computer Interface:CF Card, Ethernet
17Flash Memory:512M (U Disk)
18X,Y Resolution:< 0.02mm
19Software Compatibility:UGS, Alpha Cam, Becam, Type3, Ucancam V9
20Running Environment Temperature:0°-45°
21Relative Humidity:30%-75%
22Packing Size:3300x5000x2000mm(in parts)
23N.W.:9000kg
24G.W.:10000kg

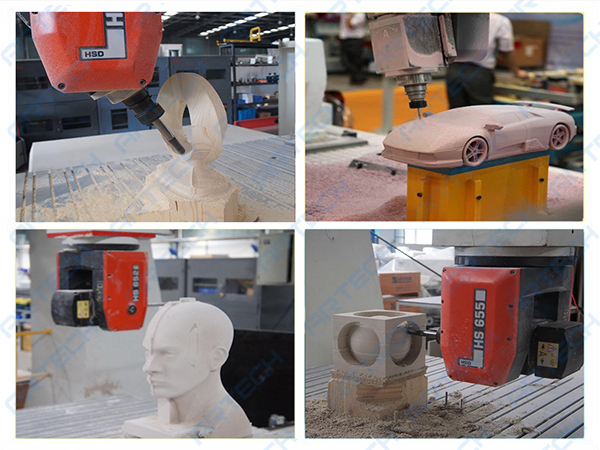

e69ynjcISoip2g0sl4EExA

1. Engineers availbal to service machinery overseas.

2. 1 year guarantee for whole machine.

3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,

we will within 12 hours to solve it.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine,we will provide the best price for you.

6. Friendly English version manual and operation video CD disk.
