Product Description
Feature:
Ball screw for Z axis,it's stable running and precision.
X Y axis are gear rack,it's stable running,precision and fast.
With Mach3 control system,easy to learn design software,just need to installed it onto
your computer,and start creating patterns.

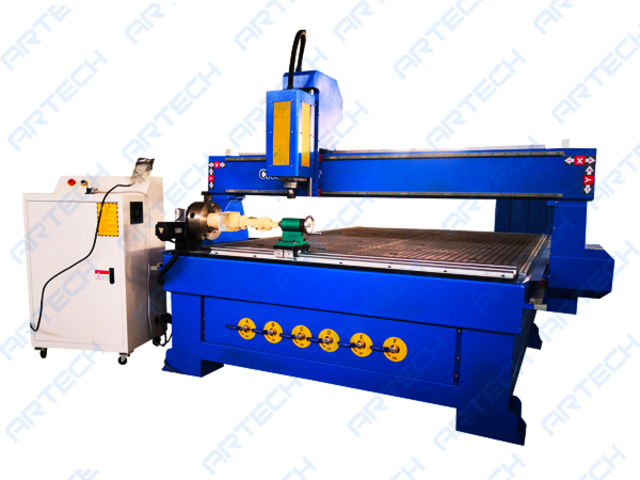

The rotary is put on the table and the Z axis space is enlarge to give working area for
Z axis.Rotary cnc router take extra jobs for removing but save time.
Heavy duty frame and gantry,it's very strong and stability.
Technical Parameter:
| Parameters | Standard Specifications |
| X Y Z axis working area | 1300x2500x200mm |
| Spindle | 3.2kw water cooling spindle |
| X Y Z traveling positioning accuracy | +-0.01/2000mm |
| Table | rotary on the table |
| Vacuum pump | air cooling 5.5kw pump |
| X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
| Max.rapid travel rate | 50000mm/min |
| Max.working speed | 30000mm/min |
| Spindle speed | 24000RPM |
| Driver motors | Servo motor and driver |
| Working voltage | 220V/380V/50HZ |
| Command language | G code |
| Control system | Mach32 or NC studio/Syntec/DSP |
| Software compatibility | Option:Artcam,Ucancam,Type3 |
| Running environment | Temperature:0~45ºC Relative humidity:30%~75% |
| Oil system | handle |
| Frame structure | Welding structure |
Video
Sample
Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,
wooden door production and processing.
Advertising industry:advertising materials such as PVC,acrylic,double color plate.
Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,
ceramic tile,glass and other materials.
Metal industry:carving aluminum,copper,stainless steel and others.
Service
Engineers available to service machinery overseas.
1 year guarantee for whole machine.
Technical support by phone,email,whatsapp and skype.If you have any problems,
we will within 12 hours to solve it.
You will be get free training advice towards our machine in our factory.
If you need any component of the machine,we will provide the best price for you.
Friendly English version manual and operation video CD disk.
