Product Description
Mini fiber laser marking machine technical parameter
Model | ART-F10W/F20W/F30W/F50W |
Laser power | 20W |
Laser wave length | 1064nm±10nm |
Q-frequency | 20KHz~100KHz |
Pules frequency | 20KHz~200KHz |
Diver gence | 0.3mard |
Marking range | 110*110mm/205*205mm/290*290mm |
Minimum line width | 0.01mm |
Minimum character | 0.1mm |
Marking speed | 10000mm/s |
Marking depth | 0~0.5mm |
Engravinglinespeed | ≤7000mm/s |
Repeat accuracy | ±0.001mm |
Beam quality | M2:1.2~1.8 |
Marking format | Graphics,text,barcode,two-dimensionalcode,automatically markingthedate,batchnumber,serialnumber,frequency,etc. |
Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
Working voltage | 220V±10%/50HZ/4A |
Unit power | <0.5KW |
Use of the environment | Cleananddustfreeofdustless |
Working condition:Humidity | 5%-75%,Freeofcondensedwater |
Laser module life | >100000hours |
The whole life | Morethan15years |
Packing size | 770*250*600*mm |
Net weight | 35kg |
Video
Sample

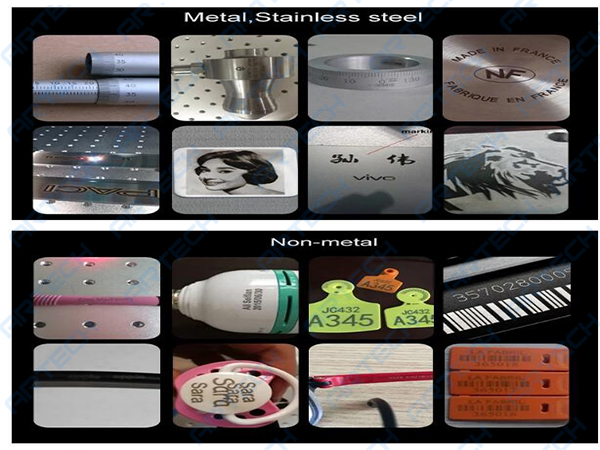

Mini fiber laser marking machine samples
Service
Mini fiber laser marking machine service
1) 1year guarantee for whole machine from production date(except consumable parts)
within guarantee under normal use and maintenance,if something is wrong with the
machine,you will get spare part for free.
2) Technical support by phone,email,whatsapp and skype.Friendly English manual and
opperation video CD disk.Engineer available to service machinery overseas.You will
also get technical supporte and service all the lifetime.
3) Normal machine is properly adjusted before dispath.You will be able to use the machine
immediately after received machine.You will be able to get free training advice towards our
machine in our factory.
4) 24 hours technical support by e-mail, calling service If you have any problems ,we will
within 12 hours to solve it .
5) If you need any component of the machine later ,we will provide the best price for you.
